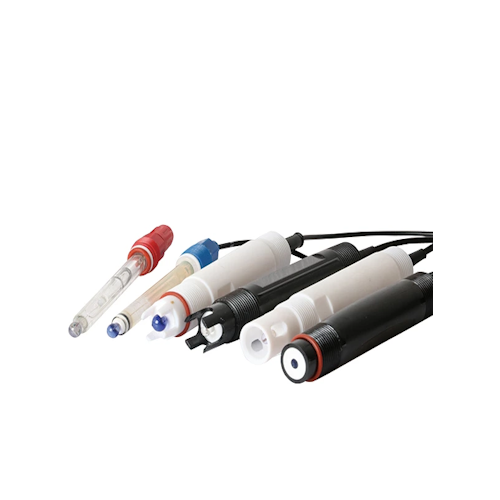

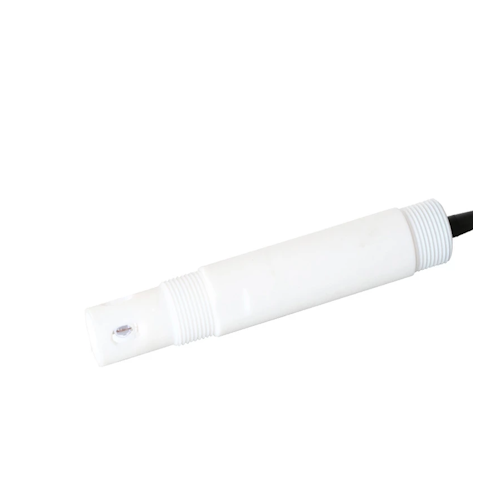

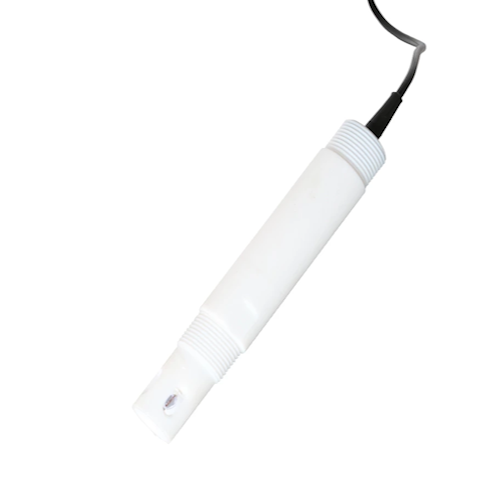

Supmea pH electrode is a high-quality sensor for the analysis and measurement of liquid components during industrial automation. These electrodes are known for their use of top-quality materials and components. They are designed as combined electrodes (the measuring electrode and the reference electrode are combined in one shaft).The temperature probe can also be integrated as an option.

Features

• Adopt international advanced solid dielectric and large area PTFE liquid junction, easy maintenance. Longdistance reference diffusion path, extends electrode life greatly in harsh environments.
• Electrode is made of high quality low-noise cable, make signal output length greater than 40 meters or more, without interference.
• Highaccuracy, fast response, good repeat-ability.
• Withsilver ions Ag /Ag-Cl reference electrode.
• Sideorvertically installation to the reaction tank or pipe.
• Electrode can be used interchangeably with similar electrodes.

Applications

• Waste water
• Wet Wells
• Oil tanks
• Sumps
• Reservoirs
• Industrial wastewater
• Electroplating plants
• Paper industry
• Drinking water
