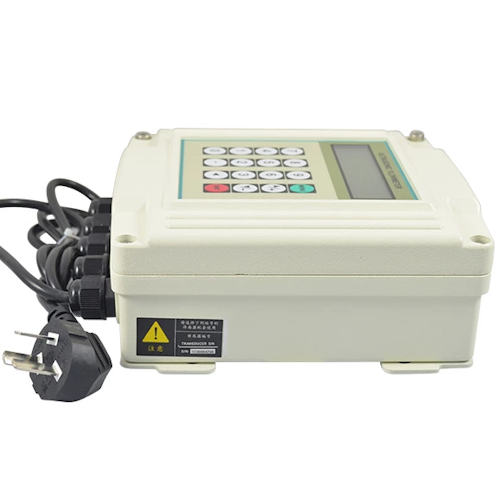

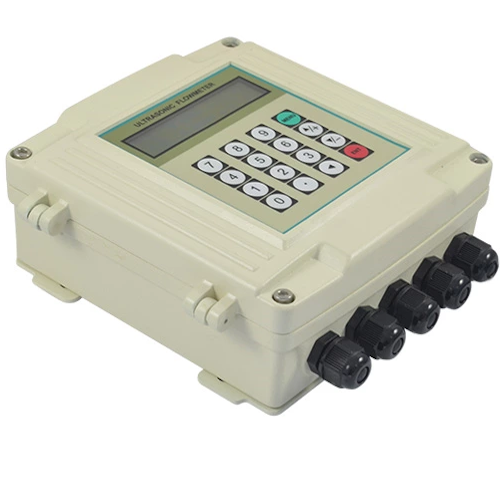

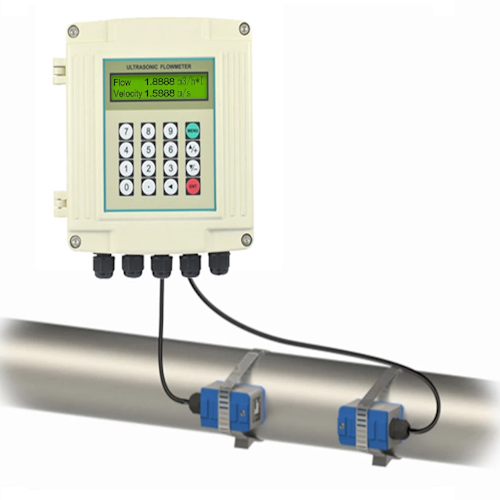

The wall- mounted ultrasonic flow meter is designed to measure the fluid velocity of liquid within a closed conduit. The transducers are a non-contacting, clamp-on type, which will provide benefits of non-fouling operation and easy installation. The SUP-1158S wall-mounted ultrasonic flow meter can be applied to a wide range of pipe flow measurements. Applicable liquids include pure liquids as well as liquid with small quantity of tiny particles.

Applications

• Petrochemical
•  Pharmaceutical
•  Paper industry
•  Metallurgy
•  Electric power
•  Environmental protection
•  Food and beverage

Features

•  Linearity: 0.5%.
•  Repeatability: 0.2%.
•  Accuracy:±1%.
•  Easy to operate.
•  Several type transducers for selection, measuring pipe size is from DN15mm to DN6000mm.
•  Adopt low voltage, multi-pulse technology to improve accuracy, useful life and reliability.
•  Powerful recording function, record the totalizer data of the last 64 days/64  months/5 years
