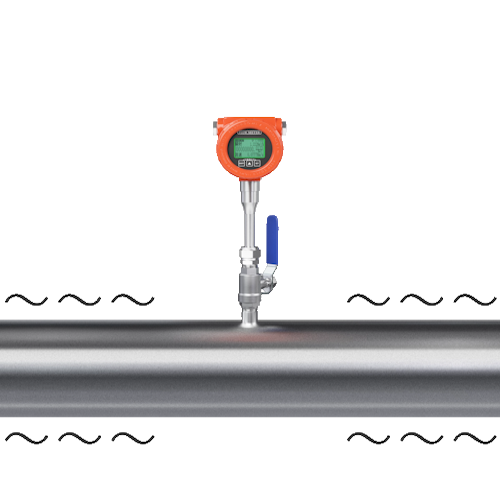

Thermal Mass Flowmeter for direct and accurate gas flow measurement without pressure or temperature compensation. Designed for high accuracy, low maintenance, and reliable industrial performance.
(Select options to see the price.)
The thermal mass flow meter is designed based on the principle of thermal diffusion. The instrument uses the constant temperature difference method to accurately measure the gas. It has the advantages of small size, high degree of digitization, convenient installation and accurate measurement. Reduce your energy costs and increase your sustainability. Monitor your consumption and analyze your leakage flows with just one measuring device.
Features
Applications
| Measuring Medium | Various gases (Except the C2H2, BCl3, etc) |
|---|---|
| Pipe Size | DN65～ DN1000 |
| Velocity | 0. 1～ 100 Nm/s |
| Accuracy | ±2.5% |
| Working Temperature | Sensor: -40℃ ~ +300℃; Transmitter: -20℃ ~ +45℃. |
| Output | 4-20mA (optoelectronic isolation, maximumload 500Ω), Pulse,RS485 (optoelectronic isolation) and HART |
| Alarm Output | 1-2 line Relay, Normally Open state, 10A/220V/ACor5A/30V/DC |
| Sensor Type | Standard Insertion |
| Pipe Material | Carbon steel, stainless steel, plastic, etc |
| Display | 4 lines LCD: Mass flow, Volume flow in standard condition, Flowtotalizer, Date and Time, Working time, and Velocity, etc. |
| Protection Class | IP65 |
| Sensor Housing Material | Stainless steel (316) |
| Power Supply | 24VDC or 220VAC, Power consumption ≥18W |
